11KV armoured cable

11kv 3 core XLPE Cable 95mm 120mm 630mm 300mm 240mm Cable price list

What’s the feature of 11kv Cable 240mm?

11kv cable 240mm as a kinds of the Medium voltage cable. 11kv cable 630mm is made of cross linked polyethylene (xlpe) or polyvinyl chloride (PVC) materials.

Especially, the xlpe insulation has superior thermal extension performance and strong current shielding. And the xlpe Insulation Material widely used for the production of the 11kv xlpe cable. Usually, the xlpe material’s temperature up to 90 degree. And then, it is going to operate at extremely high temperature of the 11kv cable 120mm .



Thereby, the 11kv cable 300mm is very popular in nowadays. The 11kv cable 240mm is not only a very proper suited for direct burial, underground conduit program, public place and so on. But a few people know its another name, it is the one 11kv Underground Cable. And this type 11kv cable 185mm is becoming much more common. So, more and more people are used to calling it as 11kv cable 95mm. So, when you want to learn a cable’s feature, you not only know its kinds of names, but also know 11kv cable 630mm structure, materials and application etc.



Which type of 3 Core XLPE Cable is used for 11 kv?

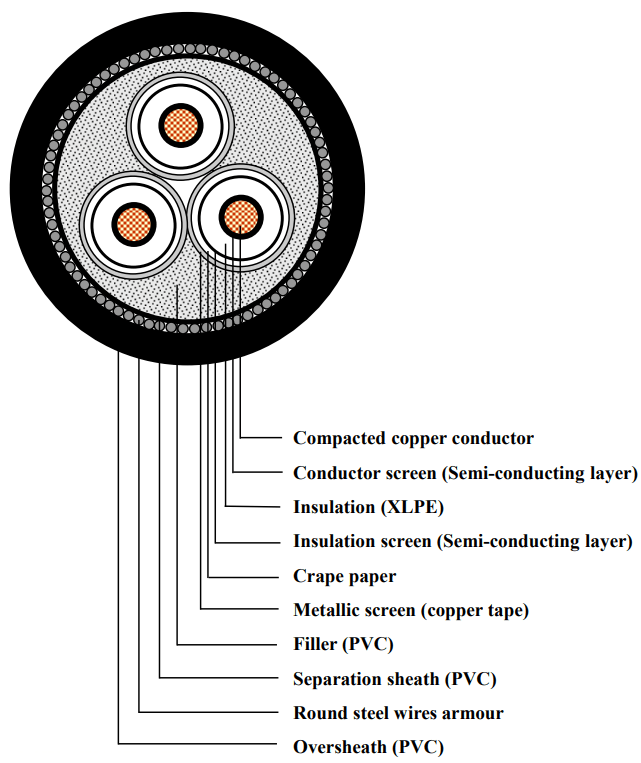

11kv 3 Core XLPE cable for energy networks where mechanical stresses are expected. Suitable for underground installation or inducts. The cable is suitable for rated voltage 6/10KV according to IEC 60502-2. The 11kv Armoured Cable  with Copper Conductors, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper tape metallic screen of each core, PVC bedding, galvanized steel wires armour (SWA) and PVC outer sheath. The 11kv xlpe cable size including 16mm, 25mm, 35mm, 50mm, 95mm, 120mm, 150mm, 185mm. 240mm.

ELECTRICAL DATA

Maximum conductor operating temperature: 90°C

Maximum screen operating temperature: 80°C

Maximum conductor temperature during S.C: 250°C



LAYING CONDITIONS AT TREFOIL FORMATION ARE AS BELOW

Soil thermal resistivity: 120˚C. Cm/Watt

Burial depth: 0.5m

Ground temperature: 15°C

Air temperature: 25°C

Frequency: 50Hz



What’s a difference between both BS6622 and BS7835 with single-core and 3 core 11kv xlpe cable

Firstly, the same information, they belong the medium voltage armoured cable, the conductor Class 2 stranded copper or Class 1 solid /Class 2 stranded aluminum, the Conductor Screen is Semi-conductive Cross-Linked Polyethylene (XLPE), insulation is XLPE, and insulation screen is Semi-conductive XLPE; Filler is Polyethylene Terephthalate (PET) fibers; The armored layer including Single Core Cable: Aluminium Wire Armour (AWA)

MultiCore Cable: Steel Wire Armour (SWA), above information are all BS6622 and BS7835 Standard185mm 240mm 300mm 11kv xlpe cable the same place.

Secondly, BS6622 Standard 11kv xlpe cable bedding is Polyvinyl Chloride (PVC), but the BS7835 Standard 11kv cable bedding is Low Smoke Zero Halogen (LSZH) compound. At the same time, BS6622 Standard 11kv xlpe cable Sheath is PVC or Medium Density Polyethylene (MDPE), but the BS7835 Standard 11kv cable has Low smoke and halogen-free LSZH.

3 core 11kv Armoured XLPE Cable parameter

Application of the difference types of 11kv cable 185mm – 630mm

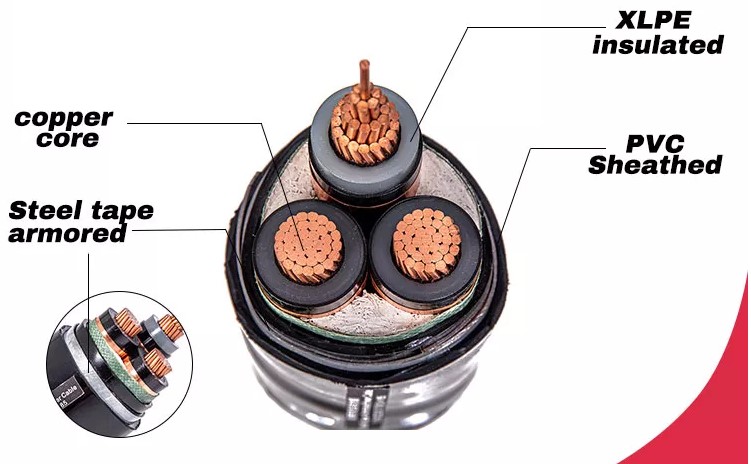

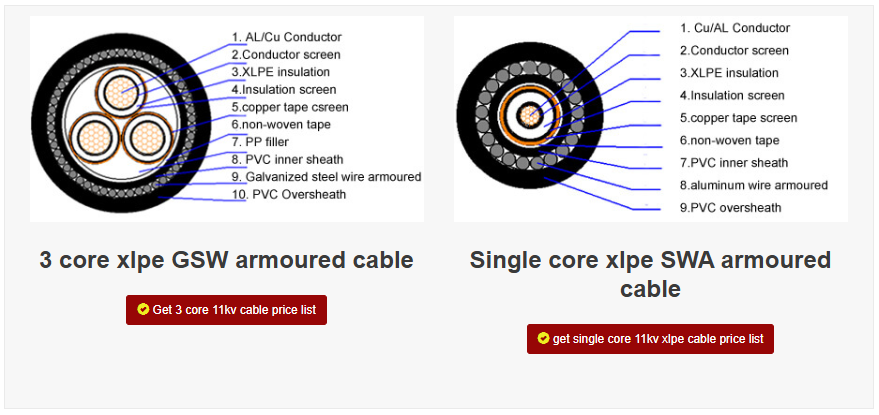

Although, we name the 11kv cable 240mm- 630mm refers to the 11kv cable 95mm. But, usually 11kv cable 300mm-185mm has two types non-armoured and armoured. And the armoured also including Steel Tape armoured (sta) 11kv xlpe cable and steel wire armoured or galvanize steel wire armoured xlpe insulation11kv cable. But the GSW armoured layer only suitable to the 11kv 3 core xlpe cable. And the ATA armoured and SWA armoured layer only use to the Single Core 11kv cable 120mm.

But If we notice the structure. We name the 4 Core 240 mm cable as single core xlpe insulation 11kv cable 185mm with Aluminum Tape armoured layer and the 11kv 3 core xlpe cable with sta and swa armoured layer.

Meanwhile, we name also the 11kv Underground Cable as 11kv armoured cable. And the armoured 11kv xlpe cable is very suitable to the underground install, power substation project, building and so on. If you are looking for the 11kv 3 core xlpe cable, you can contact  us. We will provide the best competitive 11kv XLPE Cable Price list for you reference. At the same time, our special 11kv cable 120mm engineer will free design the structure according to your requirement. And free the 11kv cable 95mm cable sample. Hope the 11kv cable 185mm -630mm help your programs.

Where get your ideal 3 core 11kv xlpe Cable Price list?

Whenever you purchase the 11kv underGround Cable. There are some confused things around with you often. But, I think, how to get your satisfying 11kv cable 300mm manufacturer that is matter of concern to many clients.

With the development of the Internet. Placing your order is so easy by the Internet. In the google search engine, you can find many reliable 11kv 3 core xlpe cable factories. They are from all over the world, and many of them are direct sellers. You can very easy get the 11kv xlpe cable price list and a free 11kv cable 300mm quotation. From these 11kv cable 95mm suppliers, you can get any what you want to know.



What is the influence 3 core 11kv xlpe cable price?

All know, the price is always an essential factor to consider when you choose 11kv xlpe cable. Generally, 11kV xlpe cable price varies depending on the following factors

Firstly, Copper and Aluminum materials price:

The copper and aluminum material raw material price is one of the most important factors that influence the price of 11kv xlpe cable. That means the 11kv xlpe cable price is determined by the cost of copper with the increase or decrease in copper price. So the 95mm 120mm 630mm 3 240mm 300mm 11xlpe cable price will also change accordingly. We don’t have a specific price.
